Product category: Ball Valve
AS FLANGED BALL VALVE
(WCB、CF8、CF8M、Ti、Ni)
Design standards
Technical specification：AS
DesignStandard:AP16D AP1608
Face to Face: ASME B16.10
Flanged Ends: ASME B16.5
Test and Inspection: API 6D AP 598
Specifications
Nominalpressure:150,300,600Lb
Strength test: PT3.0.7.5,15Mpa
Seal Test 2.2,5.5,11Mpa
The seal test 2.2, 5.5, 11 Mpa
Gas seal test: 0.6Mpa
Valve body material: WCB(C),CF8(P),theCF3 (PL),CF8M (R),CF3M (RL)
Suitable medium: water, steam, oil products,nitric acid, acetic acid
Suitable temperature:-29~180℃
Materials of main parts
|
Material Name |
Carbon steel |
Stainless steel |
||
|
Body |
A216 WCB |
A351 CF8 |
A351 CF8M |
|
|
Bonnet |
A216 WCB |
A351 CF8 |
A351 CF8M |
|
|
Ball |
A276 304/A276 316 |
|||
|
Stem |
2Cr13/ A276 304/A276 316 |
|||
|
Seat |
PTFE , RPTFE |
|||
|
Gland Packing |
PTFE/ PTFE/Flexible Graphite |
|||
|
Gland |
A216 WCB |
A351 CF8M |
||
|
Bolt |
A193-B7 |
A193-B8M |
||
|
Nut |
A193-2H |
A194-8 |
||

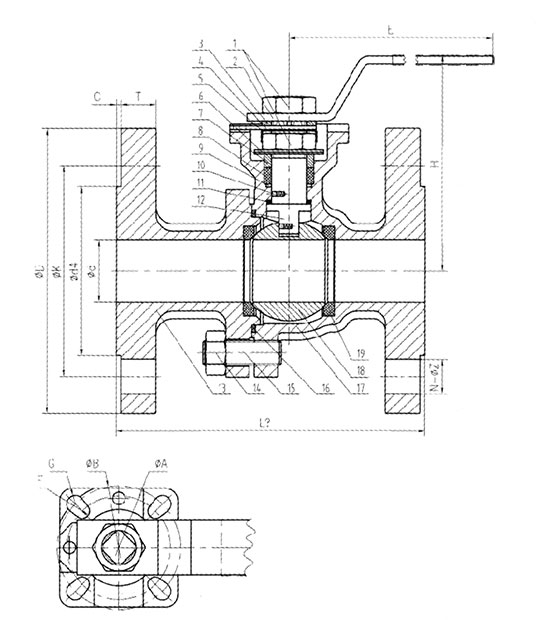

The main dimensions and connection dimensions
|
DN(mm) |
L |
D |
D1 |
D2 |
b |
f |
Z-Φd |
|
|
in |
DN |
|||||||
|
1/2” |
15 |
108 |
90 |
60.3 |
34.9 |
10 |
1.6 |
4-Φ16 |
|
3/4” |
20 |
117 |
100 |
69.9 |
42.9 |
11 |
1.6 |
4-Φ16 |
|
1” |
25 |
127 |
110 |
79.4 |
50.8 |
12 |
1.6 |
4-Φ16 |
|
1 ¼” |
32 |
140 |
115 |
88.9 |
63.5 |
13 |
1.6 |
4-Φ16 |
|
1 ½” |
40 |
165 |
125 |
98.4 |
73 |
15 |
1.6 |
4-Φ16 |
|
2” |
50 |
178 |
150 |
120.7 |
92.1 |
16 |
1.6 |
4-Φ19 |
|
2 ½” |
65 |
190 |
180 |
139.7 |
104.8 |
18 |
1.6 |
4-Φ19 |
|
3” |
80 |
203 |
190 |
152.4 |
127 |
19 |
1.6 |
4-Φ19 |
|
4” |
100 |
229 |
230 |
190.5 |
157.2 |
24 |
1.6 |
8-Φ19 |
|
5” |
125 |
356 |
255 |
215.9 |
185.7 |
24 |
1.6 |
8-Φ22 |
|
6” |
150 |
394 |
280 |
241.3 |
215.9 |
26 |
1.6 |
8-Φ22 |
|
8” |
200 |
457 |
345 |
298.5 |
269.9 |
29 |
1.6 |
8-Φ22 |
|
10” |
250 |
533 |
405 |
362 |
323.8 |
31 |
1.6 |
12-Φ25 |
|
12” |
300 |
610 |
485 |
431.8 |
381 |
32 |
1.6 |
12-Φ25 |
|
14” |
350 |
686 |
535 |
476.3 |
412.8 |
35.5 |
1.6 |
12-Φ29 |
