Product category: Globe Valve
Dimensions
|
|
d |
L |
H |
E |
|
1/2″ |
15 |
63 |
85 |
70 |
|
3/4″ |
20 |
77 |
95 |
70 |
|
1″ |
25 |
89 |
104 |
80 |
|
11/4″ |
32 |
100 |
113 |
90 |
|
11/2″ |
38 |
115 |
125.5 |
90 |
|
2″ |
50 |
134 |
142 |
100 |

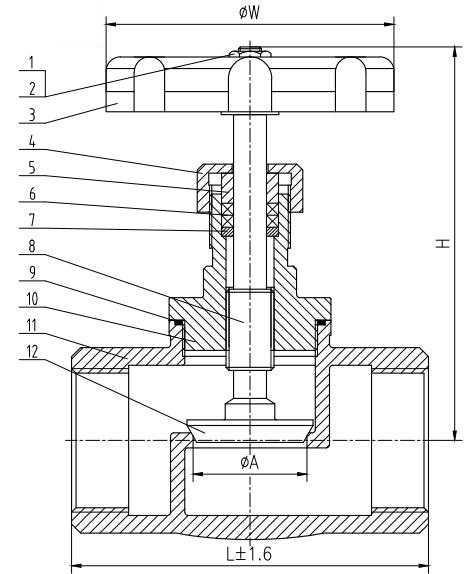

MAIN PARTS AND MATERIALS
|
NO. |
PART NAME |
MATERIAL |
|
NO. |
PART NAME |
MATERIAL |
|
1 |
Nut |
304/316 |
|
7 |
Washer |
304/316 |
|
2 |
Stem Washer |
304/316 |
|
8 |
Stem |
304/316 |
|
3 |
Handle Wheel |
AL |
|
9 |
Gasket |
PTFE |
|
4 |
Gland Ring |
CF8/CF8M |
|
10 |
Cap |
CF8/CF8M |
|
5 |
Ring |
304/316 |
|
11 |
Body |
CF8/CF8M |
|
6 |
Stem Packing |
PTFE |
|
12 |
Petal |
304/316 |
