H71 TYPE WAFER LIFT CHECK VALVE

Product name: H71 TYPE WAFER LIFT CHECK VALVE

Product category: Check Valve

H71 TYPE WAFER LIFT CHECK VALVE

(WCB、CF8、CF8M、Ti、Ni)

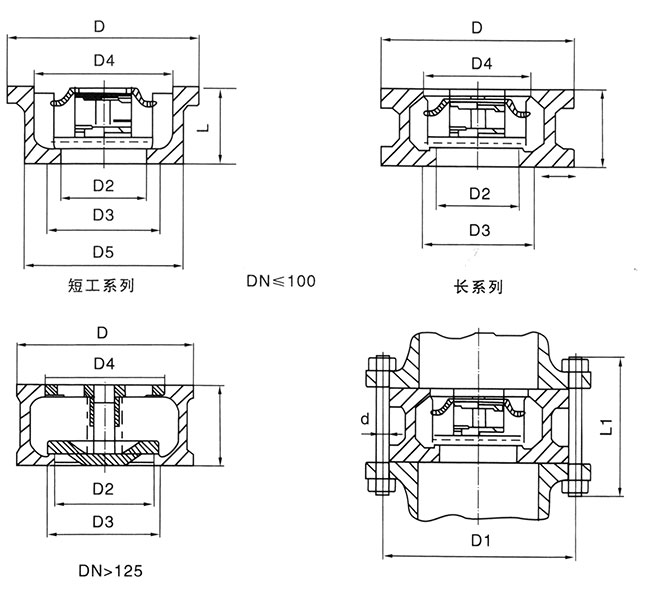

The main dimensions and connection dimensions

PN Mpa	DN mm	mm						Kg	（for reference）
PN Mpa	DN mm	L	D	D2	D3	D4	D5	Kg	D1	num	d	L1
PN1.0MPa PN1.6MPa	15	16	52	15	24	31	40	0.12	65	4	M12	75
	20	19	62	19	30	40	50	0.24	75	4	M12	90
	25	22	72	24	36	47	58	0.34	85	4	M12	90
	32	28	83	31	46	56	68	0.53	100	4	M16	100
	40	31.5	93	39	55	66	78	0.8	110	4	M16	105
	50	40	108	48	65	78	90	1.2	125	8	M16	125
	65	46	128	62	80	95	110	1.8	145	8	M16	130
	80	50	142	76	96	110	128	2.2	160	8	M16	135
	100	60	162	95	115	135	150	3.4	180	8	M16	150
	125	90	192	110	125	132	-	9	210	8	M16	180
	150	106	218	127	150	158	-	14	240	8	M20	210
PN1.0MPa	200	140	273	165	200	208	-	24	295	12	M20	240
PN1.6MPa	200	140	273	165	200	208	-	24	295	4	M20	240
PN2.5MPa	15	16	52	15	24	31	40	0.12	65	4	M12	80
	20	19	62	19	30	40	50	0.24	75	4	M12	90
	25	22	72	24	36	47	58	0.34	85	4	M12	90
	32	28	83	31	46	56	68	0.53	100	4	M16	110
	40	31.5	93	39	55	66	78	0.8	110	4	M16	115
	50	40	108	48	65	78	90	1.2	128	4	M16	125
	65	46	128	62	80	95	110	1.8	145	8	M16	135
	80	50	142	76	96	110	158	2.2	160	8	M16	145
	100	60	168	95	115	135	150	3.8	190	8	M20	160
	125	90	194	110	125	132	-	9.2	220	8	M24	205
	150	106	224	127	150	158	-	15	250	8	M24	225
	200	140	284	165	200	208	-	26	310	12	M24	260
