Product category: Check Valve
STAINLESS STEEL FEMALE CHECK VALVE
(WCB、304、316)
Materials of main parts
|
MateriaName |
HF-(16-64)C |
HF- (16-64)P |
HF- (16-64)R |
|
Body |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Bonnet |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Disc |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Sealring |
304，316,PTFE |
||
|
Gasket |
（PTFE） |
||

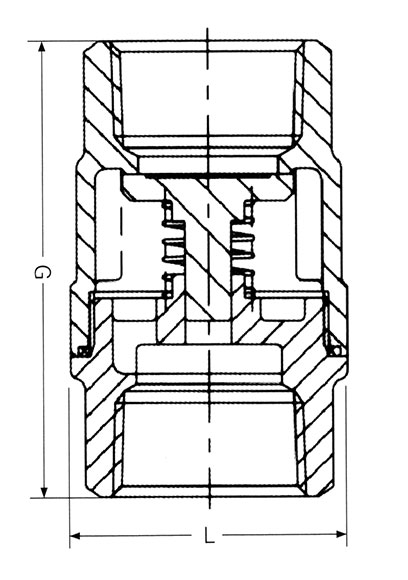

Main outer size
|
G |
DN |
L |
|
1/2” |
15 |
68 |
|
3/4” |
20 |
78 |
|
1” |
25 |
89 |
|
1 ¼” |
32 |
100 |
|
1 ½” |
40 |
106 |
|
2” |
50 |
121 |
Specifications
Nominal pressure; PN 1.6,2.5.4.0,6.4MPa
Strength testing pressure :PT2.4,3.8,6.0,9.6MPa
Applicable media:
SY11-(16-64)C Water.Oil.Gas
Applicable temperature: -29~180 ℃
SY11-(16-64)P Nitric acid
SY11-(16-64)R Acetic acid
