Product category: Check Valve
FEMALE CHECK VALVE
(WCB,CF8,CF8M)
Materials of main parts
|
Material Name |
Z15H-(16-64)C |
Z15H-(16-64)P |
Z15H-(16-64)R |
|
Body |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Bonnet |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Disc |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Sealring |
304，316,PTFE |
||
|
Gasket |
（PTFE） |
||

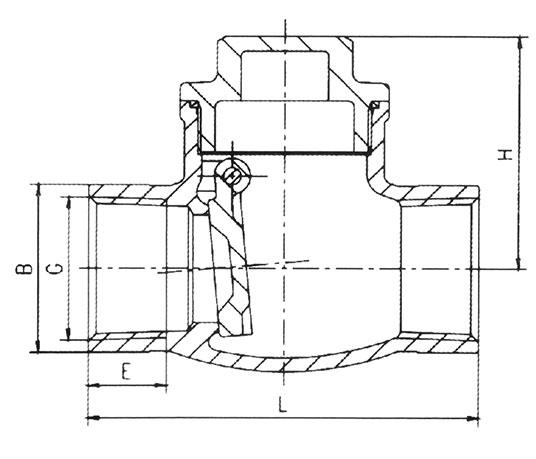

Main outer size
|
DN |
G |
L |
E |
B |
H |
|
8 |
1/4” |
65 |
10 |
24 |
42 |
|
10 |
3/8” |
65 |
10 |
24 |
42 |
|
15 |
1/2” |
65 |
12 |
26 |
42 |
|
20 |
3/4” |
75 |
17 |
32 |
46 |
|
25 |
1” |
90 |
20 |
41 |
54 |
|
32 |
1 ¼” |
105 |
20 |
49 |
58 |
|
40 |
1 ½” |
120 |
20 |
56 |
66 |
|
50 |
2” |
140 |
23 |
69 |
74 |
|
65 |
2 ½” |
165 |
27 |
86 |
89 |
|
80 |
3” |
185 |
30 |
96 |
102 |
Application Norm
Working Pressure: 16MPa
Temperature Range:-20--232'C~350C
Suitable medium: Water,oil,air and some Corrosive liqid
Thread type:G.NPT.BSPT.BSP.DIN259/2999
STAINLESS STEEL FEMALE CHECK VALVE
(WCB、304、316)
