1PC TYPE BALL VALVE WITH INTERNAL THREAD
(WCB,CF8,CF8M)
①
（1000WOG）
（1000WOG）1PC Tpye Ball Vale
With Intermal Thread
Q11F-(16-64) C、P、R
②
（1000WOG）
（1000WOG）1PC Tpye Ball Vale With（Locking）
Intermal Thread
Q11F-(16-64) C、P、R
③
（1000WOG）
（1000WOG）1PC Tpye Ball Vale With Interna
Thread Butterfly handle
Q11F-(16-64) C、P、R
④
1PC Tpye Ball Vale With Test Hole
Materials of main parts
Materials of main parts
|
MateriaName |
Q11F-(16-64) C |
Q11F-(16-64) P |
Q11F-(16-64) R |
|
Body |
WCB |
304 |
316 |
|
Ball |
304 |
304 |
316 |
|
Stem |
304 |
304 |
316 |
|
Sealring |
Polytetrafluoroethylene（PTFE） |
||
|
Gland Packing |
Polytetrafluoroethylene（PTFE） |
||

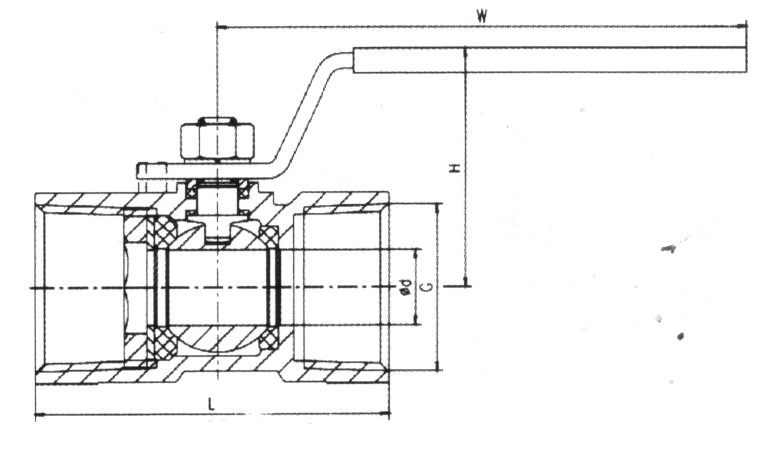

Main outer size
|
DN |
G |
d |
L |
H |
W |
|
8 |
1/4″ |
5 |
40 |
28 |
70 |
|
10 |
3/8″ |
7 |
45 |
30 |
70 |
|
15 |
1/2″ |
9 |
55 |
34 |
90 |
|
20 |
3/4″ |
12 |
60 |
38 |
90 |
|
25 |
1″ |
15 |
70 |
50 |
110 |
|
32 |
11/4″ |
20 |
80 |
56 |
120 |
|
40 |
11/2″ |
25 |
86 |
60 |
130 |
|
50 |
2″ |
32 |
101 |
65 |
140 |
|
65 |
21/2″ |
38 |
117 |
72 |
170 |
|
80 |
3″ |
50 |
140 |
105 |
185 |
Specifications
Nominal pressure: PN1.6,2.5,4 .0,6.4MPa
Strength testing pressure: PT2.4,3.8,6.0.9.6MPa
Seat testing pressure (low pressure): 0.6MPa
Applicable media:
Q11F-(16-64)C Water.Oil.Gas
Applicable temperature:-29~180℃
Q11F-(16-64)P Nitric acid
Q11F-(16-64)R Acetic acid
