Product category: Ball Valve
Materials of main parts
|
Material Name |
Q41F-(16-64)C |
Q41F-(16-64)P |
Q41F-(16-64)R |
|
Body |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Bonnet |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Ball |
1Cr18Ni9Ti 304 |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
Stem |
1Cr18Ni9Ti 304 |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
Sealring |
Polytetrafluoroethylene（PTFE） |
||
|
Gland Packing |
Polytetrafluoroethylene（PTFE） |
||

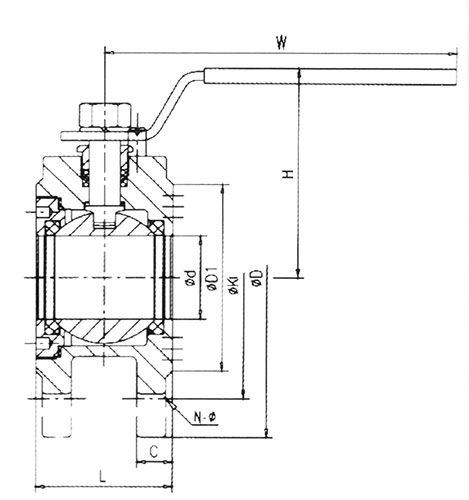

Main outer size（PN16）
|
DN |
d |
L |
D |
K |
D1 |
C |
H |
N-Φ |
W |
|
15 |
15 |
35 |
95 |
65 |
46 |
10 |
65 |
4-M12 |
100 |
|
20 |
20 |
37 |
105 |
75 |
56 |
11 |
70 |
4-M12 |
110 |
|
25 |
25 |
42 |
115 |
85 |
65 |
12 |
80 |
4-M12 |
125 |
|
32 |
32 |
53 |
135 |
100 |
76 |
14 |
90 |
4-M16 |
150 |
|
40 |
38 |
62 |
145 |
110 |
85 |
16 |
96 |
4-M16 |
160 |
|
50 |
50 |
78 |
160 |
125 |
100 |
17 |
104 |
4-M16 |
180 |
|
65 |
58 |
90 |
180 |
145 |
118 |
18 |
110 |
4-M16 |
200 |
|
80 |
76 |
110 |
198 |
160 |
132 |
18 |
130 |
8-M16 |
250 |
|
100 |
90 |
134 |
215 |
180 |
156 |
19 |
145 |
8-M16 |
270 |
|
125 |
100 |
197 |
245 |
210 |
185 |
22 |
180 |
8-M18 |
320 |
|
150 |
125 |
231 |
480 |
240 |
207 |
24 |
200 |
8-M23 |
320 |
Specifications
Nominal pressure: PN 1.6,2.5,4.0,6.4MPa
Strength testing pressure: PT2.4,3.8,6.0,9.6MPa
Seat testing pressure (low pressure): 0.6MPa
Applicable media:
Q41F-(16-64)C Water.Oil.Gas
Applicable temperature:-29~ 180℃
Q41F-(16-64)P Ntric acid
Q41F-(16-64)R Acetic acid
3PC TYPE BALL VALVE WITH FLANGE
(WCB、CF8、CF8M、Ti、Ni)
