Product category: Ball Valve
Materials of main parts
|
Material Name |
Carbon steel |
Stainless steel |
||
|
Body |
A216 WCB |
A351 CF8 |
A351 CF8M |
|
|
Bonnet |
A216 WCB |
A351 CF8 |
A351 CF8M |
|
|
Ball |
A276 304/A276 316 |
|||
|
Stem |
2Cr13/ A276 304/A276 316 |
|||
|
Seat |
PTFE , RPTFE |
|||
|
Gland Packing |
PTFE/ PTFE/Flexible Graphite |
|||
|
Gland |
A216 WCB |
A351 CF8M |
||
|
Bolt |
A193-B7 |
A193-B8M |
||
|
Nut |
A193-2H |
A194-8 |
||

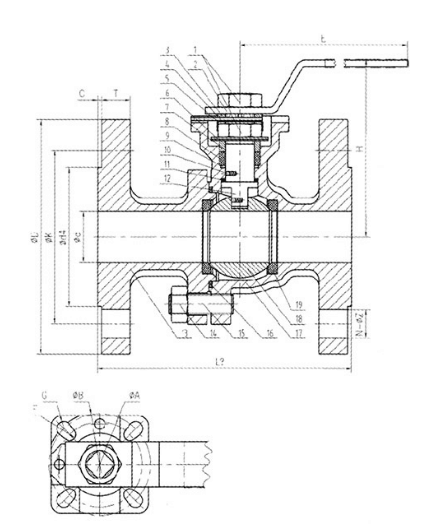

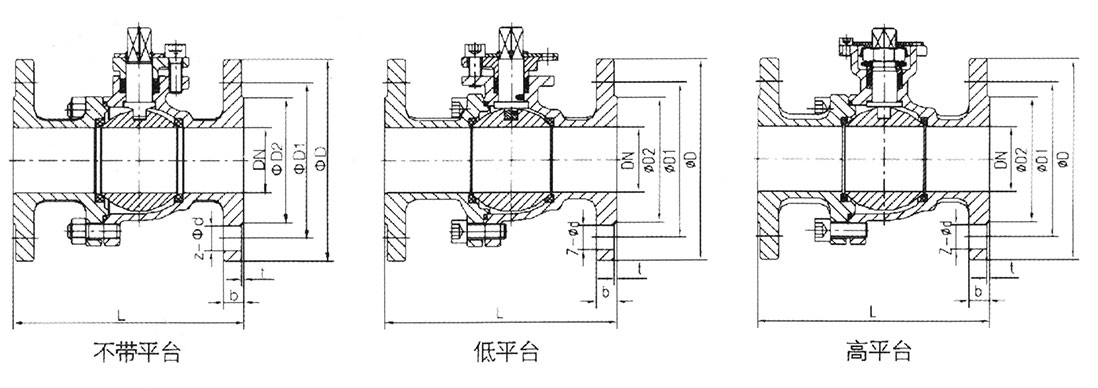

CONFIGURATION DIMENSION
|
SIZE ITEM |
1/2″ |
3/4″ |
1″ |
11/4″ |
11/2″ |
2″ |
21/2″ |
3″ |
4″ |
5″ |
6″ |
8″ |
|
d |
15 |
20 |
25 |
32 |
38 |
49 |
65 |
80 |
100 |
125 |
150 |
200 |
|
d4 |
36 |
42 |
50.5 |
63 |
73 |
91 |
103 |
123 |
151 |
186 |
216 |
271 |
|
K |
60.3 |
70 |
79 |
89 |
99 |
120 |
139 |
152 |
190 |
215 |
241 |
298 |
|
D |
89 |
98 |
108 |
114 |
125 |
150 |
177 |
190 |
228 |
254 |
279 |
343 |
|
T |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
C |
12 |
12 |
12 |
14 |
17 |
16 |
17 |
20 |
24 |
24 |
24 |
26 |
|
N-Z |
4-16 |
4-16 |
4-16 |
4-16 |
4-16 |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
|
L |
108 |
117 |
127 |
140 |
162 |
178 |
190 |
203 |
229 |
355 |
393 |
420 |
|
H |
74 |
79 |
88 |
100 |
113 |
121 |
134 |
141 |
153 |
|
|
|
|
E |
120 |
120 |
145 |
145 |
160 |
170 |
230 |
260 |
300 |
|
|
|
