Product category: Ball Valve
Materials of main parts
|
Material Name |
Q41F-(16-64)C |
Q41F-(16-64)P |
Q41F-(16-64)R |
|
Body |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Bonnet |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
Ball |
1Cr18Ni9Ti 304 |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
Stem |
1Cr18Ni9Ti 304 |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
Sealring |
Polytetrafluoroethylene（PTFE） |
||
|
Gland Packing |
Polytetrafluoroethylene（PTFE） |
||

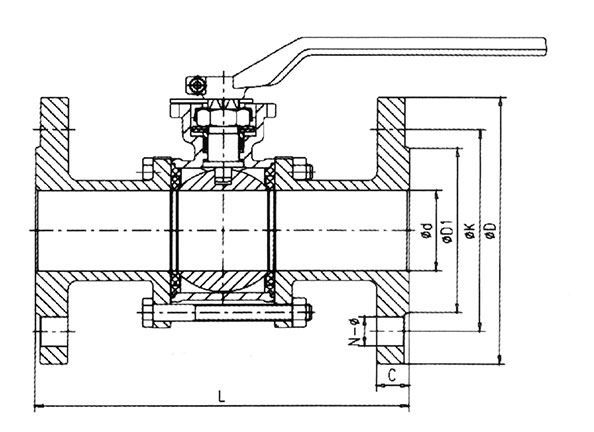

Main outer size（PN16）
|
DN |
B |
L |
H |
W |
PN16 |
D |
K |
D1 |
C |
N-Φ |
PN40 |
D |
K |
D1 |
C |
N-Φ |
CL150 |
D |
K |
D1 |
C |
N-Φ |
|
15 |
15 |
130 |
75 |
130 |
95 |
65 |
45 |
14 |
4-14 |
96 |
65 |
45 |
16 |
4-14 |
89 |
60.5 |
35 |
10 |
4-15 |
|||
|
20 |
20 |
150 |
80 |
140 |
105 |
75 |
58 |
16 |
4-14 |
105 |
75 |
58 |
18 |
4-14 |
98 |
70 |
43 |
11 |
4-15 |
|||
|
25 |
25 |
160 |
85 |
150 |
115 |
85 |
68 |
16 |
4-14 |
115 |
85 |
68 |
18 |
4-14 |
108 |
79.5 |
51 |
12 |
4-15 |
|||
|
32 |
32 |
180 |
100 |
170 |
140 |
100 |
78 |
16 |
4-18 |
140 |
100 |
78 |
18 |
4-18 |
117 |
89 |
64 |
13 |
4-15 |
|||
|
40 |
40 |
200 |
110 |
200 |
150 |
110 |
88 |
16 |
4-18 |
150 |
110 |
88 |
18 |
4-18 |
127 |
98.5 |
73 |
15 |
4-15 |
|||
|
50 |
50 |
230 |
120 |
220 |
165 |
125 |
102 |
18 |
4-18 |
165 |
125 |
102 |
20 |
4-18 |
152 |
120.5 |
92 |
16 |
4-19 |
|||
|
65 |
65 |
250 290 |
130 |
280 |
185 |
145 |
122 |
18 |
4-18 |
185 |
145 |
122 |
22 |
8-18 |
178 |
139.5 |
105 |
18 |
4-19 |
|||
|
80 |
80 |
280 310 |
140 |
300 |
200 |
160 |
138 |
20 |
8-18 |
200 |
160 |
138 |
24 |
8-18 |
190 |
152.5 |
127 |
19 |
4-19 |
|||
|
100 |
100 |
320 350 |
160 |
340 |
220 |
180 |
158 |
20 |
8-18 |
235 |
190 |
162 |
24 |
8-22 |
229 |
190.5 |
157 |
24 |
8-19 |
Nominal pressure: PN 1.6,2.5,4.0,6.4MPa
Strength testing pressure: PT2.4,3.8,6.0.9.6MPa
Seat testing pressure (low pressure): 0.6MPa
Applicable media:
Q4 1F-( 16-64)C Water.Oil.Gas
Applicabletemperature:-29-180C
Q41F-(16-64)P Nitric acid
Q41F-(16-64)R Acetic acid
Applicable temperature:-29C~ 180℃
